Lynx 305
Product line up - Machine specifications - Lynx Series - Lynx 300 Series - Similar products - Comparison
Characteristics
| Belt driven | LMG | Ball Screw |
 |  |  |
| S1 | XZ | X |
Model variations
| 2160 |
 |

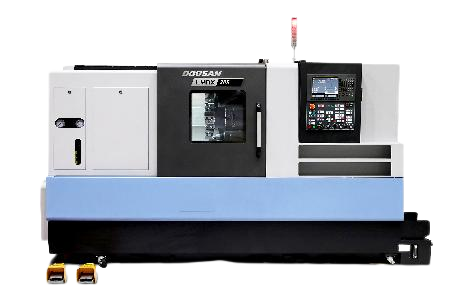

The Lynx 305 is a horizontal turning center with a workpiece diameter of 450 mm and a workpiece length of 756 mm.
| Category | Item | Specification |
| Capacity | Swing over bed[mm] | 651 |
| Swing over saddle[mm] | 461 | |
| Workpiece | Workpiece diameter[mm] | 450 |
| Workpiece length[mm] | 756 | |
| Chuck | Chuck size(S1)[in] | 10 |
| Turning spindle 1(S1) | Barworking dia.[mm] | 76 |
| Tool post 1(T1) | No. of tool stations[ea] | 12 |
| Travels | Stroke X[mm] | 255 |
| Stroke Z[mm] | 790 | |
| Rapid traverse(X)[m/min] | 24 | |
| Rapid traverse(Z)[m/min] | 30 | |
| Table | Workpiece allowable Load[kg] | 260 |
| Category | CNC brand | Fanuc |
| CNC system | DOOSAN FANUC i Series | |
| Origin | China |
Turning spindle 1(S1)
| Spindle name | Turning spindle no. 1 max. speed[r/min] | 3500 | Bearing inner dia.(front)[mm] | 120 | Interface(S1) | A2-8Available chucks | Turning spindle 1 thru hole dia.[mm] | 86 | Output[kW] | 15！18.5 | Torque[Nm] | 403.3 | Turning spindle 1 transmission | Belt driven |
Tool post #1(T1)
| Name | Tool holder | BASE_HOLDER | Tool shank | 25x25 | Boring bar | 40 | Position | 12 | Index time | 0.85 | Speed | Power | Torque |
Guide way
| Axis | X | Z | |
| Guide way | Roller LMG/LMG | Roller LMG/LMG | |
| Qty | 2 | 2 |
Linear axes drive
| Axis | X | Z | |
| Drive | Ball screw | Ball screw | |
| Qty | 1 | 1 |
3rd party product
| Product | Description |
 OLP40(Renishaw) | Workpiece measurement |
Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
